| ราคาปกติ |
|
33,000.00 |
| ราคาพิเศษ |
|
20,000.00 |
| รวมภาษี |
|
21,400.00 |
| ลดไป |
|
39.39 % |
|
|
|

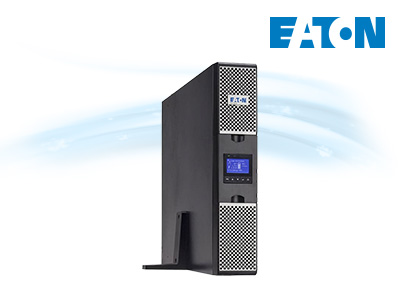

- Eaton 9PX 1000i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U)
- Rating (VA/Watts) : 1000VA/1000W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 86.5x440x450 (mm)
- Weight : 17.4 (kg)
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
56,500.00 |
| ราคาพิเศษ |
|
37,400.00 |
| รวมภาษี |
|
40,018.00 |
| ลดไป |
|
33.81 % |
|
|
|
- Eaton 9PX 2200i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
- Rating (VA/Watts) : 2200VA/2200W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
- Weight : 25 kg / 24.5 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
85,000.00 |
| ราคาพิเศษ |
|
47,500.00 |
| รวมภาษี |
|
50,825.00 |
| ลดไป |
|
44.12 % |
|
|
|
- Eaton 9PX 3000i RT2U
- Technology : On-line double conversion with Power Factor Correction (PFC) system
- Format : RT2U (tower/rack 2U) and RT3U (tower/rack 3U)
- Rating (VA/Watts) : 3000VA/3000W
- Connection :
- - Output Connections : 8 IEC C13 (10A) sockets + 2 IEC C19 (16A) sockets
- - Switched outlet group : 2 outlet groups
- Input voltage : 200/208/220/230/240V
- Input Voltage Range : 176-276V without derating (up to 100-276V with derating)
- Input frequency range : 40-70Hz, 50/60Hz autoselection, frequency converter mode
- Communication Ports :
- - 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF
- - 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay
- Communication slot : 1 slot for Network-MS card (included in netpack versions), ModBus-MS or Relay-MS cards
- Dimensions H x W x D : 2U : 86.5x440x605 / 3U : 130x440x485
- Weight : 27.6 kg / 27.4 kg
- Warranty : 3Years On-Site
|
|
|
|
|
|
|
 |
| |
|
|
| ราคาปกติ |
|
191,500.00 |
| ราคาพิเศษ |
|
87,800.00 |
| รวมภาษี |
|
93,946.00 |
| ลดไป |
|
54.15 % |
|
|
|
- Eaton 9PX 6000i RT6U 3:1 withRack kit and Network card
- Technical specifications
- Rating (VA/W) : 6000VA/5400W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
238,230.00 |
| ราคาพิเศษ |
|
99,500.00 |
| รวมภาษี |
|
106,465.00 |
| ลดไป |
|
58.23 % |
|
|
|
- Eaton 9PX 8000i RT6U 3:1 with Rack kit and Network card
- Technical specifications
- Rating (VA/W) : 8000VA/7200W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
231,900.00 |
| ราคาพิเศษ |
|
102,500.00 |
| รวมภาษี |
|
109,675.00 |
| ลดไป |
|
55.80 % |
|
|
|
- Eaton 9PX 11000i RT6U with Rack kit
- Technical specifications
- Rating (VA/W) : 11000VA/10000W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Input Voltage Range : 176-276V without derating (up to 100–276V with derating)
- Input frequency range/THDI : 40-70Hz, 50/60Hz autoselection, frequency converter as standard, THDI < 5%
- Efficiency : Up to 95% in Online mode, 98% in Hi-Efficiency mode
- Connections
- Input : Terminal block (up to 16mm)
- Outputs : Terminal block
- Outputs with HotSwap Maintenance Bypass : Terminal block + 4 IEC C19 (16A)
- Communication
- Communication ports : 1 USB port, 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously)
- 4 dry contacts (DB9), 1 mini terminal block for remote On/ Off and 1 for remote power Off
- 1 DB15 for parallel operation
- Communication slot : 1 slot for Network-MS card, ModBus-MS or Relay-MS cards
- Dimensions (H x W x D, mm) : 440 x 260 x 700
- Weight (kg) : 86
- Warranty : 2 Years On-Site Service by Eaton (Thailand)
|
|
|
|
|
|
|
|
| |
|
|
| ราคาปกติ |
|
252,400.00 |
| ราคาพิเศษ |
|
124,500.00 |
| รวมภาษี |
|
133,215.00 |
| ลดไป |
|
50.67 % |
|
|
|
- Eaton 9PX 11000i RT6U 3:1 with Rack kit and Network card
- Technical specifications
- Rating (VA/W) : 11000VA/10000W
- Electrical characteristics
- Technology : On-line double-conversion with Power Factor Correction (PFC) system
- Nominal voltage : 380/400/415 3:1
- Input Voltage Range : 305V-480V without derating (up to 175V-480V with derating) 3:1
- Output voltage/THDU : 200/208/220/230/240V +/– 1%; THDU
|
|
|
|
|
|
|
|
