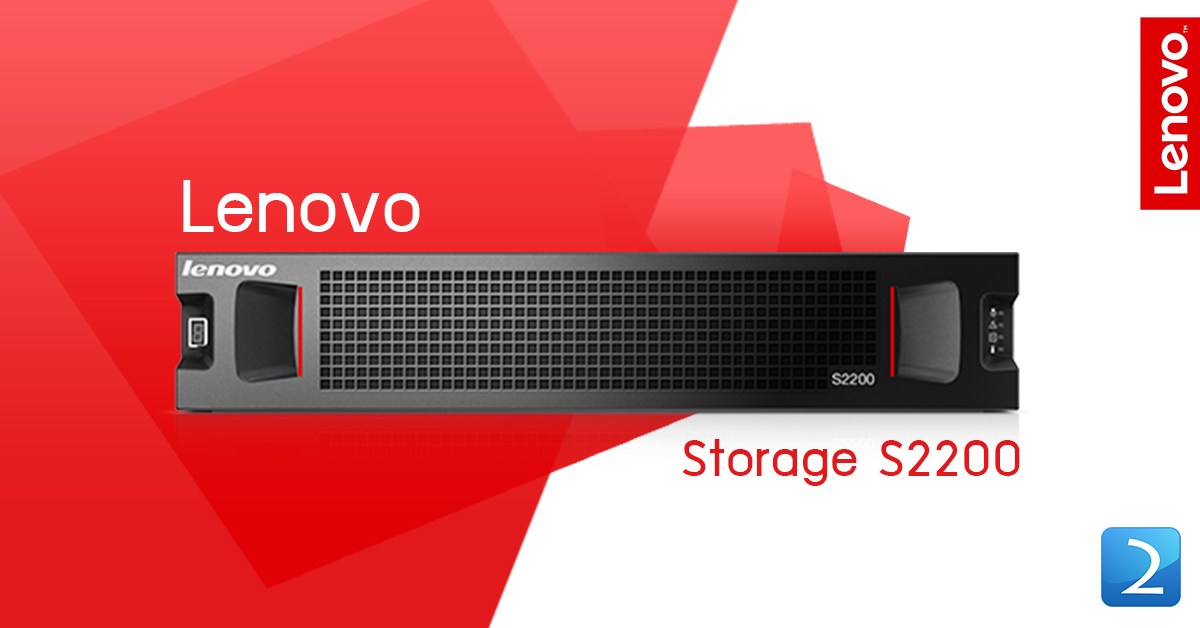

  Lenovo Storage S2200 SFF with Dual SAS Controller (Part# : 64112B4)
DataSheet Lenovo Storage S2200

ราคาปกติ   182,970.00
รวมภาษี   165,422.00
(Including VAT)
ก่อนภาษี   154,600.00
(Excluding VAT)
ลดไป   9.59%
POINT   3,092.00
Lenovo Storage S2200 SFF with Dual SAS Controller Standard SET
Host Interface : Four 6/12Gb SAS Host ports (Two host ports per controller) (Mini-SAS HD, SFF-8644)
Support RAID levels :RAID 0, 1, 5, 6, and 10
Drive bays : 24 SFF drive bays in the S2200 controller enclosure
RAID controller cache :6 GB per controller. Battery-free cache protection with flash memory and supercapacitors.
Host operating systems : Microsoft Windows Server 2012 and 2012 R2; Red Hat Enterprise Linux (RHEL) 6 and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12; VMware vSphere 5.5 and 6.0.
Standard software features : Intelligent Real-time Tiering for HDDs, Virtualized Storage Pools, Thin Provisioning, SSD Read Cache, Rapid RAID Rebuild, Snapshots (up to 64 targets).
Cooling : Redundant cooling with two fans that are built into power supplies
Power supply : Two redundant hot-swap 595 W AC power supplies.
Hot-swap parts : RAID controllers, expansion modules, optical transceivers, drives, power supplies with fans.
Warranty : 3-year On-site warranty, parts-only limited warranty with 9x5 next business day by Lenovo (Thailand).
Form factor : S2200 controller enclosure: 2U rack mount

Promotion Set 1
ราคาพิเศษเพียง 256,500 บาทเท่านั้น!!*
+ 5 x [00MM700] Lenovo Storage 2.5in 600GB 10k SAS HDD
+ 4 x [00WE748] External MiniSAS HD 8644/MiniSAS HD 8644 1m cable
+ 4 x [00AE912] N2225 SAS/SATA HBA (Two external x4 mini-SAS HD connectors (SFF-8644))
+ Free!! Lenovo Storage S2200 Basic Hardware Installation
*Configuration ใน set 1 รองรับการเชื่อมต่อแบบ SAS กับ Server ได้ประมาณ 4 Servers โดยเชื่อมต่อผ่าน SAS Controller*

Promotion Set 2
ราคาพิเศษเพียง 269,000 บาทเท่านั้น!!*
+ 5 x [00MM705] Lenovo Storage 2.5in 1TB 7.2k NL- SAS HDD
+ 4 x [00WE748] External MiniSAS HD 8644/MiniSAS HD 8644 1m cable
+ 4 x [00AE912] N2225 SAS/SATA HBA (Two external x4 mini-SAS HD connectors (SFF-8644))
+ Free!! Lenovo Storage S2200 Basic Hardware Installation
*Configuration ใน set 2 รองรับการเชื่อมต่อแบบ SAS กับ Server ได้ประมาณ 4 Servers โดยเชื่อมต่อผ่าน SAS Controller*


Warranty : 3-year On-site warranty, parts-only limited warranty with 9x5 next business day by Lenovo (Thailand)
วิธีการจัดส่ง : ตรวจสอบ Stock สินค้า Preorder
อับเดทล่าสุด : 20 ม.ค 21



ITEM DESCRIPTION
Host Interface : Four 6/12Gb SAS Host ports (Two host ports per controller) (Mini-SAS HD, SFF-8644)
Support RAID levels :RAID 0, 1, 5, 6, and 10



Drive bays : 24 SFF drive bays in the S2200 controller enclosure
: Up to 96 SFF drive bays per system (24 SFF drive bays in the E1024 drive expansion enclosure; up to 3x E1024 enclosures)
RAID controller cache :6 GB per controller. Battery-free cache protection with flash memory and supercapacitors.
Host operating systems : Microsoft Windows Server 2012 and 2012 R2; Red Hat Enterprise Linux (RHEL) 6 and 7; SUSE Linux Enterprise Server (SLES) 10, 11, and 12; VMware vSphere 5.5 and 6.0.
Standard software features : Intelligent Real-time Tiering for HDDs, Virtualized Storage Pools, Thin Provisioning, SSD Read Cache, Rapid RAID Rebuild, Snapshots (up to 64 targets).
Optional software features : Intelligent Real-time Tiering for SSDs, Snapshots (up to 512 targets), Asynchronous Replication.
Performance :
Dual controller configuration:
Up to 80,000 random read IOPS (4 KB blocks)
Up to 3.3 GBps sequential read throughput (512 KB blocks)
Up to 2.4 GBps sequential write throughput (512 KB blocks)
Cooling : Redundant cooling with two fans that are built into power supplies
Power supply : Two redundant hot-swap 595 W AC power supplies.
Hot-swap parts : RAID controllers, expansion modules, optical transceivers, drives, power supplies with fans.
Management interfaces : Web-based GUI; Telnet, SSH, or Direct Connect USB CLI; HTTP scripting with XML encoding; SNMP and email notifications
Security features : Secure Socket Layer (SSL), Secure Shell (SSH), and SEDs
Dimensions : SFF chassis: Height: 89 mm (3.5 in), width: 447 mm (17.6 in), depth: 519 mm (20.5 in)
Weight : S2200 SFF: Minimum: 17.8 kg (39.2 lb); Maximum: 24.3 kg (53.6 lb)
Warranty : 3-year On-site warranty, parts-only limited warranty with 9x5 next business day by Lenovo (Thailand).
Form factor : S2200 controller enclosure: 2U rack mount
