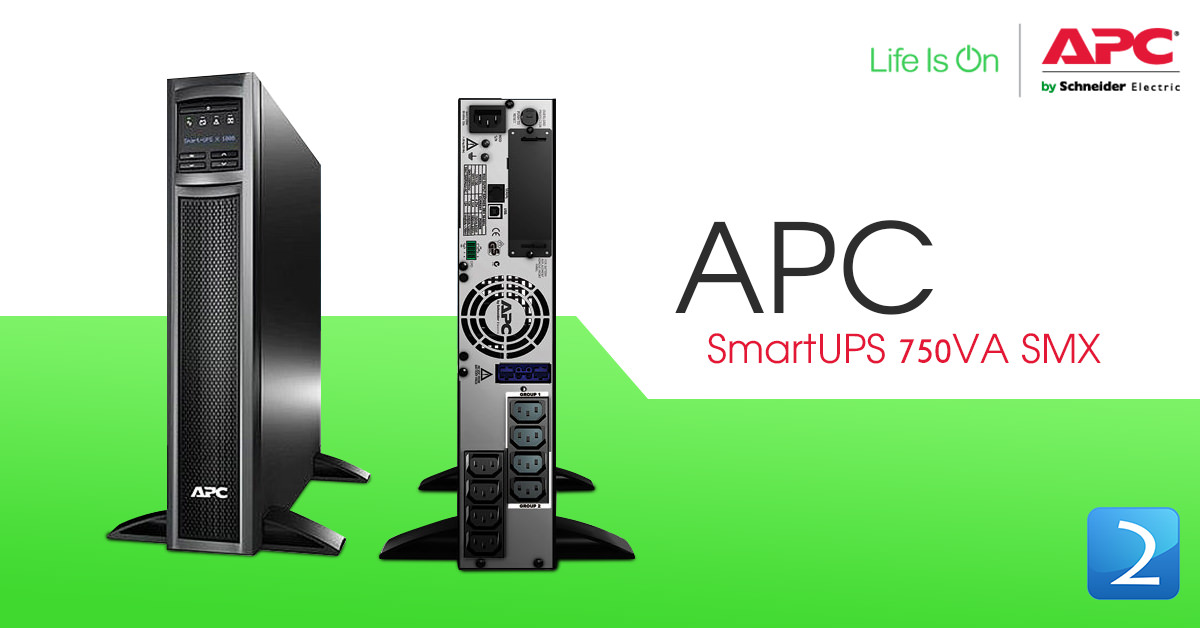

  APC SmartUPS 750VA SMX (Part# : SMX750I)
DataSheet APC SmartUPS 750VA SMX

ราคาปกติ   24,749.10
รวมภาษี   23,130.19
(Including VAT)
ก่อนภาษี   21,617.00
(Excluding VAT)
ลดไป   6.54%
POINT   432.34
APC SmartUPS 750VA SMX Standard SET
APC Smart-UPS X 750VA 600Watt Rack/Tower LCD 230V

Output Connections : (8) IEC 320 C13 (Battery Backup)
Topology : Line Interactive
Waveform type : Sine wave
Max Configurable Power (Watts) : 600 Watts / 750 VA
Input Connections : IEC-320 C14
Control panel : Multi-function LCD status and control console
Interface Port(s) : SmartSlot , USB
Available SmartSlot™ Interface Quantity : 1

Warranty : 3 Year Warranty Onsite Swap by APC Thailand

**สิ่งที่ shipped มาด้วยในกล่อง : CD with software , Documentation CD , Installation guide , Rack Mounting brackets , Removable support feet , Smart UPS signalling RS-232 cable , User Manual**

**รับทำห้อง Datacenter แบบครบวงจร โดยใช้อุปกรณ์ ถูกต้องตรงตามมาตรฐานของ APC**

Warranty : 3 Year Warranty Onsite Swap by APC Thailand
วิธีการจัดส่ง : ตรวจสอบ Stock สินค้า Preorder
อับเดทล่าสุด : 03 มิ.ย 20



ITEM DESCRIPTION
Output
Output power capacity : 600 Watts / 750 VA
Max Configurable Power (Watts) : 600 Watts / 750 VA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5%
Output Frequency (sync to mains) : 50/60Hz +/- 3 Hz
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (8) IEC 320 C13 (Battery Backup)

Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Cord Length : 1.83 meters
Input voltage range for main operations : 160 - 286 V
Input voltage adjustable range for mains operation : 151 - 302 V
Number of Power Cords : 1
Other Input Voltages : 220, 240

Batteries & Runtime
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules : 1
Typical recharge time : 3 hour(s)
Battery Slots Empty : 1
RBC Quantity : 1
DC Overcurrent Protection : 60 A
Battery Volt-Amp-Hour Capacity : 312
Extended Run Options : APC-Smart-UPS-X-750VA-Rack-Tower-LCD-230V

Communications & Management
Interface Port(s) : SmartSlot , USB
Control panel : Multi-function LCD status and control console
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO) : Optional
Available SmartSlot™ Interface Quantity : 1

Surge Protection and Filtering
Surge energy rating : 645 Joules
Filtering : Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical
Maximum Height : 89 , 8.9 cm
Maximum Width : 432 , 43.2 cm
Maximum Depth : 490 , 49.0 cm
Rack Height : 2U
Net Weight : 22.05 kg
Shipping weight : 26.5 kg
Shipping Height : 246 , 24.6 cm
Shipping Width : 589 , 58.9 cm
Shipping Depth : 620 , 62.0 cm
Color : Black
Units per Pallet : 8.0

Environmental
Operating Environment : 0 - 40 °C
Operating Relative Humidity : 0 - 95 %
Operating Elevation : 0-3000 meters
Storage Temperature : -15 - 45 °C
Storage Relative Humidity : 0 - 95 %
Storage Elevation : 0-15000 meters
Audible noise at 1 meter from surface of unit : 40.0 dBA
Online thermal dissipation : 69.0 BTU/hr

Conformance
Approvals : C-tick, CE, EN 50091-1, EN 50091-2, VDE
Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand


Sustainable Offer Status
RoHS : Compliant
REACH : REACH: Contains No SVHCs
PEP : Available in Documentation tab
EOLI : Available in Documentation tab
