Networking
-----------------------------
-----------------------------
-----------------------------
|
 |
 |
-----------------------------
-----------------------------
-----------------------------
-----------------------------
-----------------------------
-----------------------------
-----------------------------
-----------------------------
-----------------------------
|
|
|
|
| |

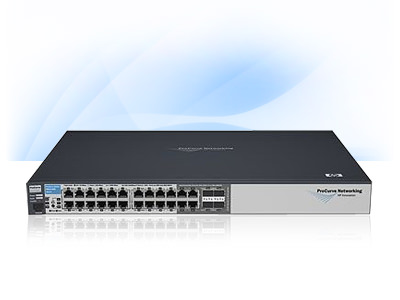

HP ProCurve Switch 2810 24G (Part# : J9021A)
|
|
 |
HP ProCurve Switch 2810 24G Standard SET
20 auto-sensing 10/100/1000 ports
4 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port
or an open mini-GBIC slot (for use with mini-GBIC transceivers)
Latency : <5.6 μs (FIFO 64-byte packets)
Memory and Processor : Processor: MIPS @ 264 MHz processor; Packet buffer size: 0.75 MB; Flash Capacity: 16 MB; SDRAM: 64 MB
throughput : up to 35.7 million pps
|
 |
|
39,900.00 |
|
32,700.00 |
|
7,200.00 |
|
1,090.00 |
|
| Warranty |
: |
Lifetime, advance replacement, next business day by HP |
| วิธีการจัดส่ง |
: |
ส่งฟรีทั่วประเทศ 1 วัน (กรุงเทพ) 2 วัน (ต่างจังหวัด) |
| อับเดทล่าสุด |
: |
16 ก.ค 11 |
|
|
 |
 |
ITEM DESCRIPTION
| Technical features |
| External I/O ports |
20 auto-sensing 10/100/1000 ports (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab Type 1000Base-T)
Duplex: 10Base-T/100Base-TX: half or full; 1000Base-T: full only
Media type: IEEE Auto-MDIX; 1 RJ-45 serial console port; 4 dual-personality ports - each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX, IEEE 802.3ab 1000Base-T Gigabit Ethernet) or an open mini-GBIC slot (for use with mini-GBIC transceivers) |
| Rack mounting |
Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only |
| Memory and Processor |
Processor: MIPS @ 264 MHz processor; Packet buffer size: 0.75 MB; Flash Capacity: 16 MB; SDRAM: 64 MB |
| Latency |
- <5.6 μs (FIFO 64-byte packets) |
| Address Table size |
8,000 entries |
| routing/switching capacity |
48 Gbps |
| throughput |
up to 35.7 million pps |
| Management Features |
ProCurve Manager Plus; ProCurve Manager; command-line interface; Web browser; configuration menu; out-of-band management |
| Communications |
RFC 783 TFTP; RFC 951 BootP; RFC 1542 BootP; RFC 854 Telnet; RFC 768 UDP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 2030 Simple Network Time Protocol; IEEE 802.3x Flow Control; RFC 3376 IGMPv1/v2/v3; IEEE 802.1D Spanning Tree; IEEE 802.1w Rapid Convergence Spanning Tree; IEEE 802.1s Multiple Spanning Trees; IEEE 802.3ad Link Aggregation Control Protocol; IEEE 802.1AB Link Layer Discovery Protocol; RFC 1492 TACACS+; RFC 2138 RADIUS; RFC 2866 RADIUS accounting; SSHv2 Secure Shell; Secure Sockets Layer (SSL); IEEE 802.1X Network Login; IEEE 802.1Q VLANs; IEEE 802.1Q GVRP; IEEE 802.1p Priority; SNMPv1/v2c/v3; HTML and telnet management; RFC 1493 Bridge MIB; RFC 1213 MIB II; RFC 2096 IP Forwarding Table MIB; RFC 2737 Entity MIB; RFC 2863 Evolution of Interface; RFC 2665 Ethernet MIB; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 2021 RMON probe configuration (RMON v2); RFC 2668 802.3 MAU MIB; RFC 2613 SMON; RFC 2674 802.1p and IEEE 802.1Q Bridge MIB; RFC 2618 RADIUS Client MIB; RFC 2620 RADIUS Accounting MIB; RFC 3176 sFlow |
| Power Requirements |
100-127 VAC/200-240 VAC; 50/60 Hz |
| Power availability |
1.25/0.75 A |
| Power consumption |
60 W |
| Operating conditions |
| Electromagnetic emissions |
FCC Class A; EN55022/CISPR-22 Class A; VCCI Class A; IEC/EN61000-3-2; IEC/EN61000-3-3 |
| Operating Temperature Range |
0° to 45°C |
| Operating Humidity Range |
15 to 95% non-condensing |
| Dimensions / weight / warranty |
| Dimensions (w x d x h) |
44.2 x 32.26 x 4.32 cm |
| Weight |
3.27 kg |
| Warranty |
Lifetime warranty: for as long as you own the product, with next-business-day advance replacement (available in most countries) |
|
 |
|
 |
|
 |
|
